Pallets Air
| Container Measurements / Pallets | |||
|---|---|---|---|
| Type | Code | Dimensions | Internal |
 PYB Pallet |
PYB | 244x140 cm | 230x126 cm |
 Standard Pallet |
P1P,PAG,PAJ | 318x224 cm | 304x210 cm |
 Pallet with side extensions |
PAW | 318x224 cm | 304x210 cm (adicional 50 cm cada lateral) |
 A320/ A321 Container |
AKH | 156x153 cm | 146x144x111 cm |
 LD3-Container |
AVE, AKE, AVA*, AKN** | 156x153 cm | 195x142x150 cm |
 PYB-Pallet |
RKN | 156x153 cm | 182X140X132 cm (max. 120cm para Carga refrigerada) |
 LD 7/AAK- Container |
AAK | 318x224 cm | 304x210x153 cm |
 AAY-Container |
AAY | 318x224 cm | 304x210x200 cm |
 Triple horse container |
HAJ | 233x213 cm | 228x208x185 cm |
| The measurements of the equipment here indicated meet the international standards provided by its owner or the manufacturer. Transunion, S.A. is not responsible of any small variation of size or capacity which can be produced in the equipment of transportation due to discrepancy in the standard of manufacturing or stale in its use. |
|||
Containers Types / Sizes
| Standard Containers | |||||||
|---|---|---|---|---|---|---|---|

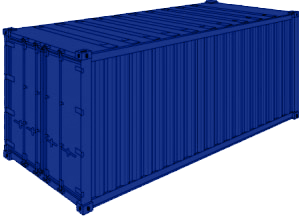

| Standard 20' | |||||||
| inside length |
inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 19'4" | 7'8" | 7'10" | 7'8" | 7'6" | 1,172CuFt | 4,916lbs | 47,900lbs |
| 5.900m | 2.350m | 2.393m | 2.342m | 2.280m | 33.2CBM | 2,230Kg | 21,770Kg |

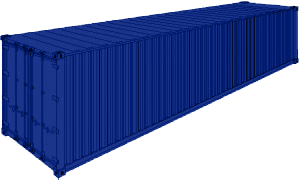

| Standard 40' | |||||||
| inside length |
inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 39'5" | 7'8" | 7'10" | 7'8" | 7'6" | 2,390CuFt | 8,160lbs | 59,040lbs |
| 12.036m | 2.350m | 2.392m | 2.340m | 2.280m | 67.7CBM | 3,700Kg | 26,780Kg |
 |
|||||||

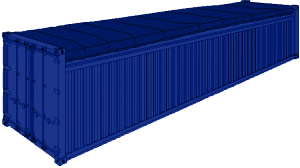

| Open Top Containers | |||||||
| Open top 20' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 19'4" | 7'7" | 7'8" | 7'6" | 7'2" | 1,136CuFt | 5,280lbs | 47,620lbs |
| 5.894m | 2.311m | 2.354m | 2.286m | 2.184m | 32.23CBM | 2,400Kg | 21,600Kg |
| Open top 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 39'5" | 7'8" | 7'8" | 7'8" | 7'5" | 2,350CuFt | 8,490lbs | 58,710lbs |
| 12.028m | 2.350m | 2.345m | 2.341m | 2.274m | 65.5CBM | 3,850Kg | 26,630Kg |
 |
|||||||

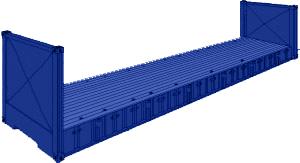

| Flat Rack Containers | |||||||
| Flat rack 20' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 18'5" | 7'3" | 7'4" | - | - | - | 5,578lbs | 47,333lbs |
| 5.894m | 2.311m | 2.354m | - | - | - | 2,530Kg | 21,470Kg |
| Flat rack 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 39'7" | 6'10" | 6'5" | - | - | - | 12,081lbs | 85,800lbs |
| 12.080m | 2.438m | 2.103m | - | - | - | 5,480Kg | 39,000Kg |
 |
|||||||
| Flat Rack Collapsible Containers | |||||||
| Flat rack Collapsible 20' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 18'6" | 7'3" | 7'3" | - | - | - | 6,061lbs | 61,117lbs |
| 5.618m | 2.208m | 2.233m | - | - | - | 2,750Kg | 17,730Kg |
| Flat rack Collapsible 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 39'7" | 6'10" | 6'5" | - | - | - | 12,081lbs | 85,800lbs |
| 12.080m | 2.126m | 2.043m | - | - | - | 5,800Kg | 39,000Kg |
|
|||||||
| Reefer Containers | |||||||
| Reefer 20' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 17'8" | 7'5" | 7'5" | 7'5" | 7'3" | 1,000CuFt | 7,040lbs | 45,760lbs |
| 5.425m | 2.275m | 2.260m | 2.258m | 2.216m | 28.3CBM | 3,200Kg | 20,800Kg |
| Reefer 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 37'8" | 7'5" | 7'2" | 7'5" | 7'0" | 2,040CuFt | 10,780lbs | 56,276lbs |
| 11.493m | 2.270m | 2.197m | 2.282m | 2.155m | 57.8CBM | 4,900Kg | 25,580Kg |
| Reefer High Cube 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 37'11" | 7'6" | 8'2" | 7'6" | 8'0" | 2,344CuFt | 9,900lbs | 57,761lbs |
| 11.557m | 2.294m | 2.500m | 2.294m | 2.440m | 66.6CBM | 4,500Kg | 25,980Kg |
 |
|||||||
| High Cube Containers | |||||||
| HIGH CUBE 40' | |||||||
| inside length | inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 39'5" | 7'8" | 8'10" | 7'8" | 8'5" | 2,694CuFt | 8,750lbs | 58,450lbs |
| 12.036m | 2.350m | 2.697m | 2.338m | 2.565m | 76.3CBM | 3,970Kg | 26,510Kg |
|
|||||||

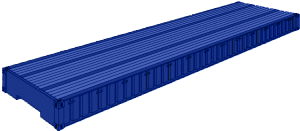

| Platform Containers | |||||||
| PLATFORM 20' | |||||||
| inside length |
inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 19'11" | 8'0" | 7'4" | - | - | - | 6,061lbs | 52,896lbs |
| 6.058m | 2.438m | 2.233m | - | - | - | 2,750Kg | 24,000Kg |
| PLATFORM 40' | |||||||
| inside length |
inside width |
inside height |
door width |
door height |
capacity | tare weight |
maxi cargo |
| 40'0" | 8'0" | 6'5" | - | - | - | 12,783lbs | 86,397lbs |
| 12.180m | 2.400m | 1.950m | - | - | - | 5,800Kg | 39,200Kg |
 |
|||||||
